Configuring a Report Using In Operator

Scenario: You want to configure a report that displays the data for some objects and you want to view the data for only those objects that are linked to a graphic.

  • Ensure that you have configured an Objects report that displays the data of some objects.
  1. From the Select Columns dialog box select the Related Items Type column.

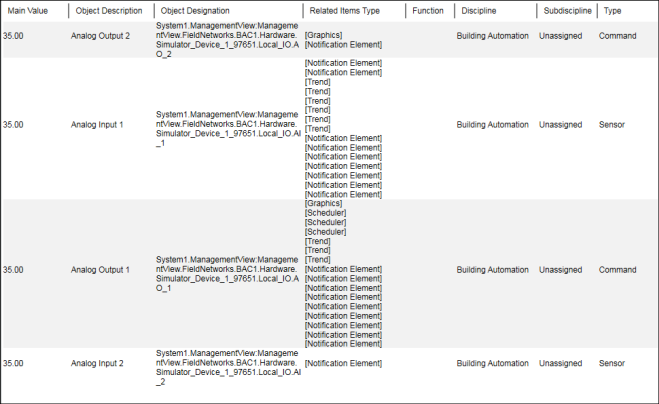

  • The Objects report displays with the Related Items Type column added to it.
  1. Perform the following steps to add a Condition filter with the In operator:

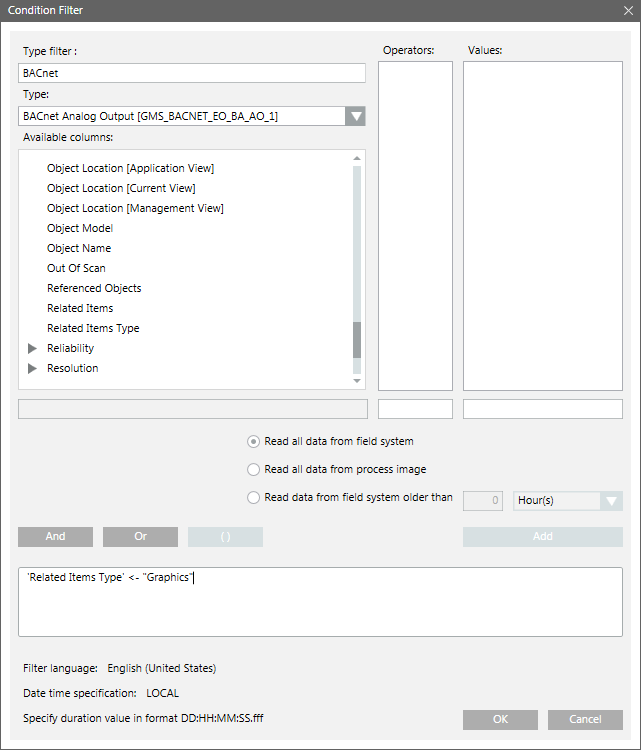

    a. From the Condition Filter dialog box, select Related Items Type in the Available Columns list.
    b. Select In (←) from the Operators list.
    c. In the Values text field, type Graphics.
    d. Click Add.
  • The Condition filter is added to the table and displays in the Filter Expression field below the Add button.
  1. Click OK.
  1. Run the report.

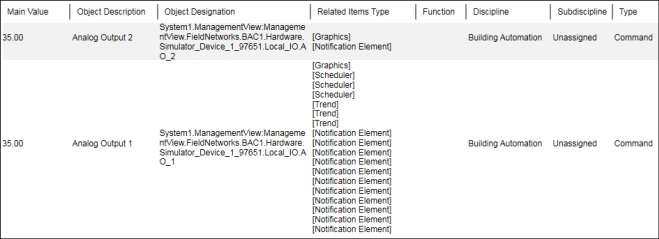

  • The generated report displays the data for only those objects that have a graphic linked to them.
