Setting Up Commands in Object Models

In the Models & Functions tab, you can configure commands for the properties of object models. The following procedures provide some examples. For reference information, see Command Configuration Expander.

Information

For a list of available commands, see the Command List section.

Set Up a Boolean Command (Out of Service)
  • You want to configure a command on an Out of Service property.
  1. In System Browser, select Project > System Settings > Libraries > [... ] > [object model].
  1. Select the Models & Functions tab.
  1. In the Properties expander, select the Out of Service property.
  1. Open the Command Configuration expander.
  1. Under Dependency 1, select the option Out_of_Service.
  1. Click New.
  • A new line is added to the table.
  1. Click in the Command column, and from the drop-down list select status BACnetWriteToggleOn.
  1. In the Label column, enter a label for the button, for example, Out of Svc.
  1. In the Out_of_Service column, first select the operand equal sign (=) and then select the option In Service.
  1. Select Alias.
  1. Repeat steps 4 to 7 as per the table below.
  • The Out of Service property is configured.
  • The buttons for operation are defined.

Command

Label

Acked_Transitions

Alias

BACnetWriteToggleOn

Out of Service

=

In Service

n/a

BACnetWriteToggleOff

In Service

=

Out of Service

n/a

Information

Additional dependencies can be defined as needed. In this case, select Dependency 2 and 3 and configure the appropriate response.



Analog Output (Present Value)
  1. In System Browser, select Project > System Settings > Libraries > [... ] > [analog output object model].
  1. Select the Models & Functions tab.
  1. In the Properties expander, select the Present Value property.
  1. Open the Command Configuration expander.
  1. Under Dependency 1, select Undefined.
  1. Click New.
  • A new line is added to the table.
  1. In the Command column, select status BACnetAnalogWithPriority.
  • In the Label column, enter a label, for example, Command for the buttons.
  • In the Current_priority column, first select the operand and then select the desired options as needed.
  • Select Alias.
  • Define the user group (Standard, Event, Advanced, Ownership) used to execute the function.
  1. Repeat steps 3 and 4 as per the table below.
  • The Present Value property is configured.
  • The buttons for operation are defined.

Command

Label

Acked_

Transitions

Alias

Group

Expander

Combi-ned

BACnetAnalogWithPriority

Command

*

n/a

n/a

Standard

Expander

BACnetReleaseWithPriority

Release

*

n/a

n/a

Standard

Expander

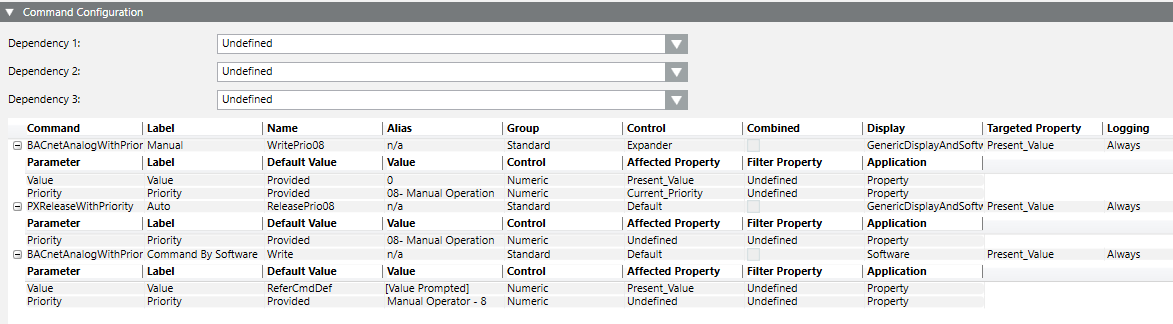

Detailed Information on BACnetAnalogWithPriority

Parameter

Label

Default Value

Value

Control

Affected property

Value

Value

Runtime

[x]

Numeric

Present_Value

Priority

Priority

Provided

MO =8

DropDown

Undefined
